Industrial Equipment Sector   Industrial Boiler Burners.

Volcano's Industrial Equipment Sector provides Cogeneration burner, Low NOx burner, Low fuel consumption burner and the other burners.
These products can supply clean and efficient thermal energy in various sites.

PACKAGE TYPE INDUSTRIAL BOILER BURNERS

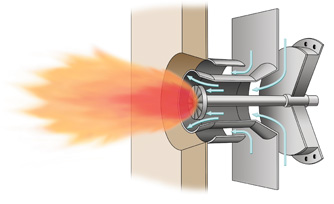

VS Series   Package Boiler Burners

General

This VS series has been developed for package type boilers application, which are nowadays mostly employed for the industrial boiler plants ranging from 6t/h to 35t/h, thus holding a high ranking in the sales of our industrial boiler burners.

Burner Structurs

To meet the package type boiler design concept, the VS series package burner is so designed that the burner register, wind box, control panel containing automatic combustion control systems (ACC) and burner management systems and piping, wiring for just outside connections are assembled in a compact packaged unit, thereby enabling ease of installation and full automatic combustion control.

Features

  • Systems sustain a wide turndown range of 10:1
  • Liquid fuel such as A, B, and C heavy oil, light oil, naphtha and waste oil firing is available
  • Low NOx option is available

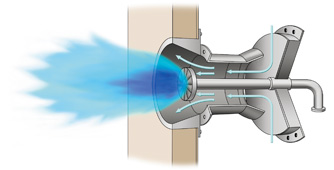

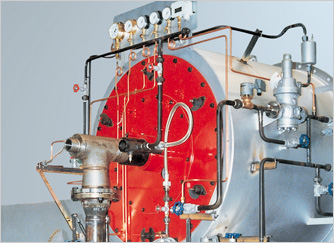

VSG Series Burners   Package Boiler Burners

General

VSG series is a gas fuel burning version of the VS series burners and has been employed widely for package type industrial boilers ranging from 1.5t/h to 10t/h.

Burner Structurs

To meet the package type boiler design concept, the VSG series package burner is so designed that burner register, wind box, control panel containing automatic combustion control systems (ACC) and burner management systems and piping, wiring for just outside connections are assembled in a compact packaged unit thereby enabling ease of installation and full automatic combustion control.

Features

  • System sustains a wide turndown range of 10:1
  • LNG,LPG gas firings are available
  • Low NOx option is available

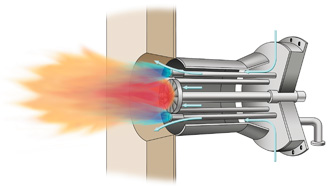

VSX Series Burners   Package Boiler Burners

General

VSX series is an oil and gas fuel burning version of VS series burners and has been employed widely for package type industrial boilers ranging 8t/h to 30t/h.

Burner Structurs

In the center of the register, the fuel oil sprayer with swirler is furnished. Surrounding the exterior of this swirler, multiple gas spuds(Spoke nozzle) are furnished, where intimate air/gas mixing is facilitated by primary air flows from outside the swirler.To meet the package type boiler design concept,the VSX series package burner is so designed that burner register, wind box, control panel containing automatic combustion controls(ACC) and burner management systems and piping, wiring for just outside connections are assembled in a compact packaged unit thereby enabling ease of installation and full automatic combustion control.

Features

  • Wide turndown range 8:1
  • Oil and gas firing in combination available
  • LNG, LPG, HFO and LFO gaseous fuel singular burning available
  • Low NOx option available
